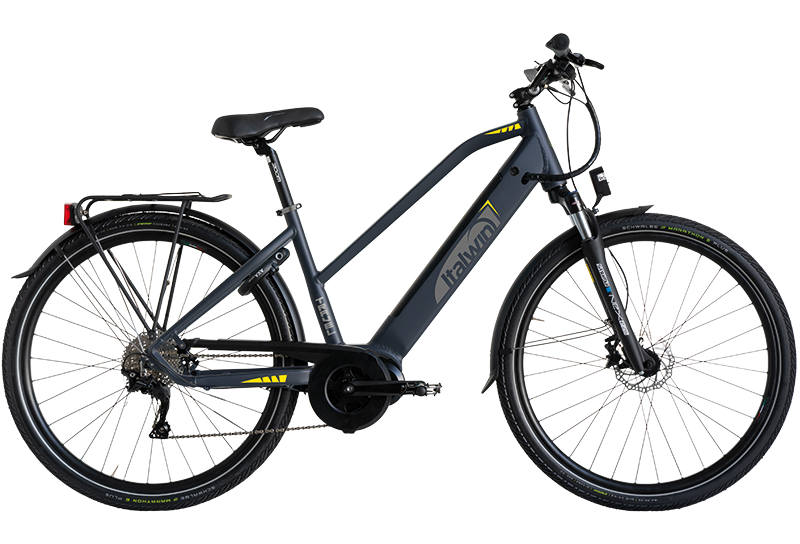

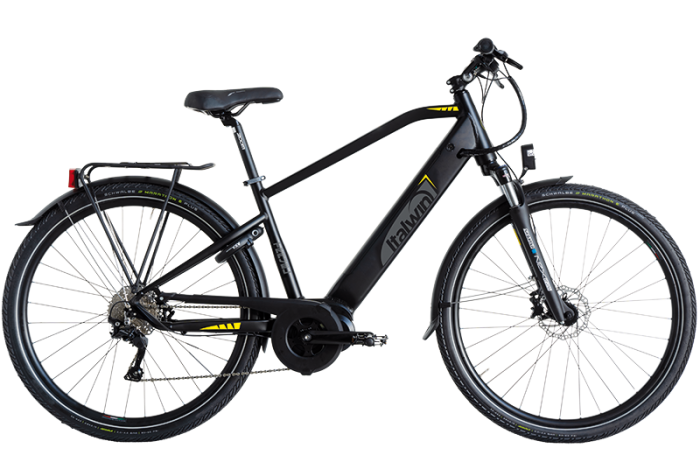

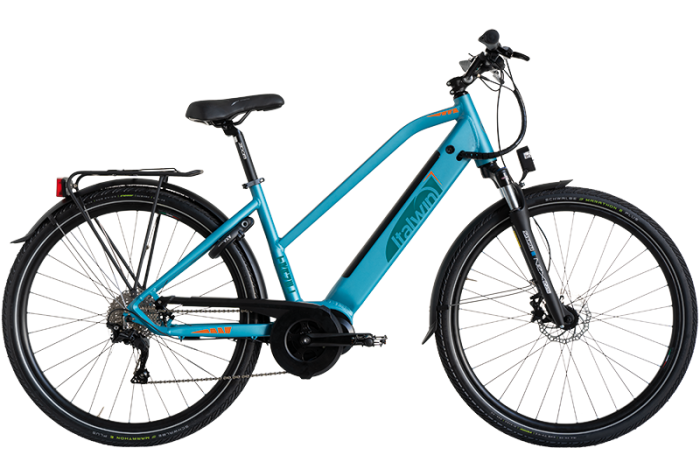

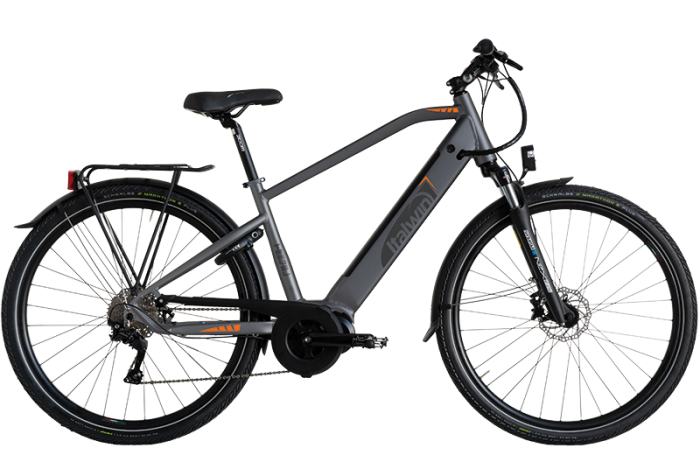

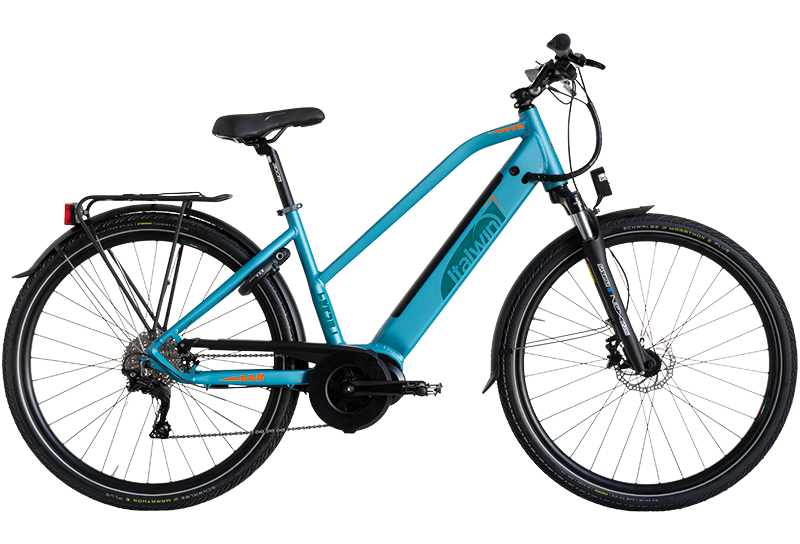

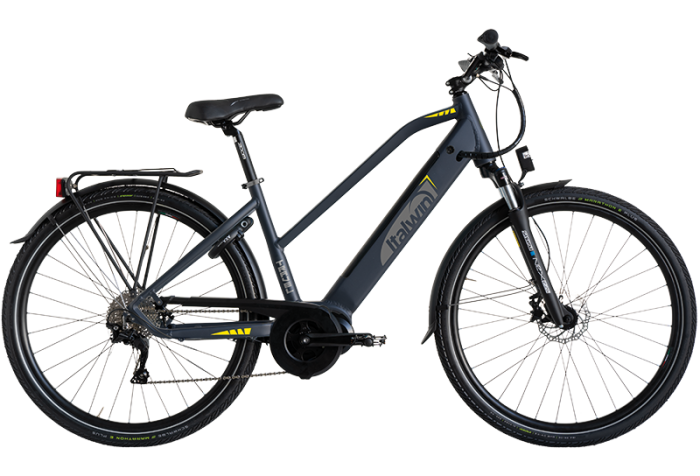

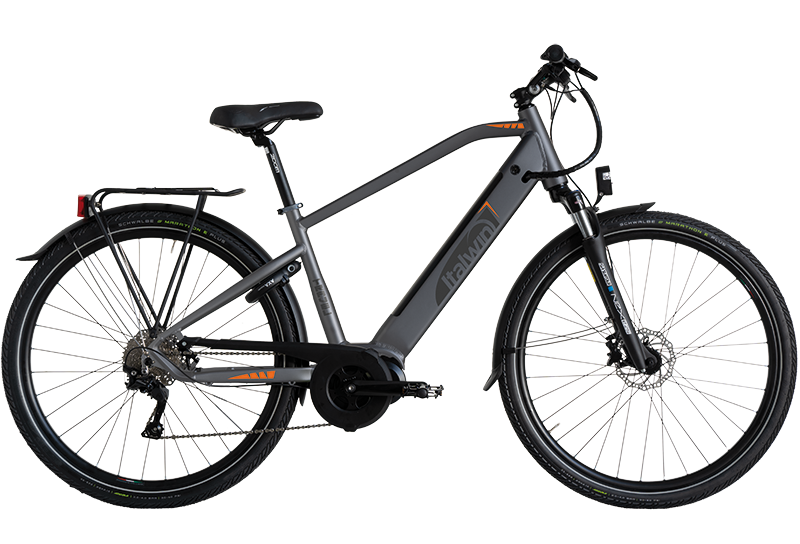

Travel

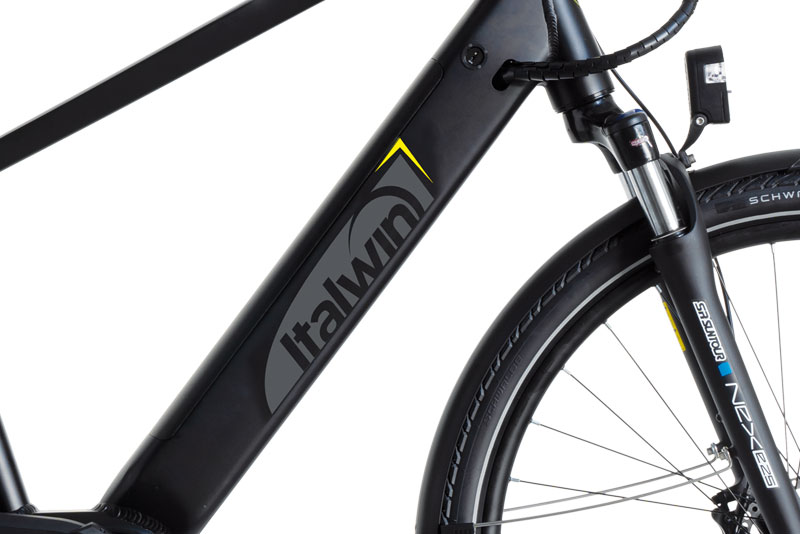

Integrated waterproof battery
The battery and the charging plug are fully integrated into the frame with IPX5 protection level from water and dust to avoid damage. Easy charging by removing the battery.

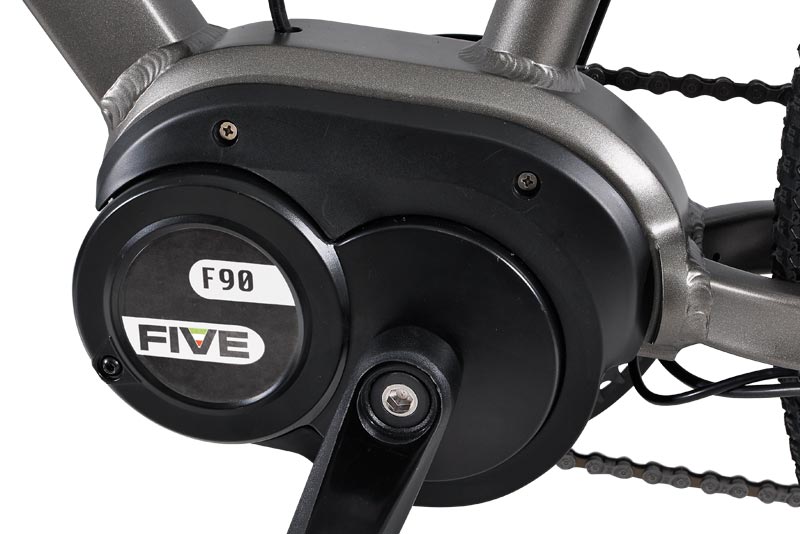

FIVE F90 central motor
FIVE F90 is the central engine for a safe and funny drive, both in the city and on trips out of town. Equipped with exceptional boost, FIVE F90 delivers power to deal with slopes up to 30%.

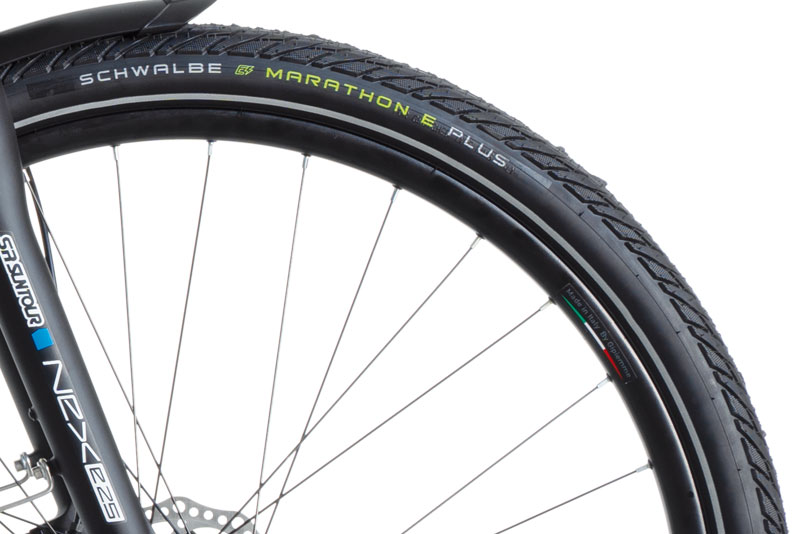

Schwalbe Marathon trekking tires
“No-puncture” tire thanks to the anti-puncture protection. Maximum safety and grip at high speeds and on long excursions. The hi-tech construction materials give a surprisingly smooth glide.

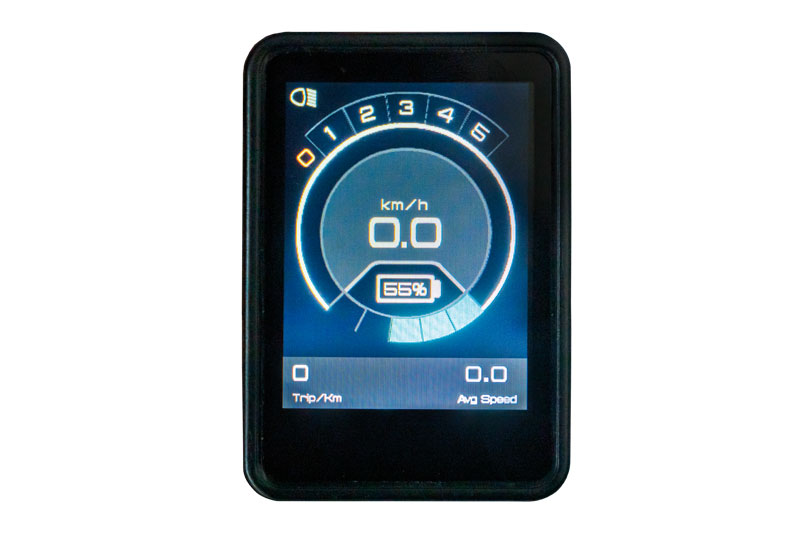

Color LCD display
Color LCD display, which allows to select the assistance levels, activate the soft start and check the battery level. The device is equipped with a USB port to charge your smartphone. It has a dusk sensor, which regulates the luminosity of the display according to light conditions.
TECHNICAL SPECIFICATIONS | Travel
- Trasmission: Chain KMC special e-bike
- Frame: Hydroformed aluminium 47×67 cm
- Wheels: 28″ x 2.15″ Schwalbe Marathon e-plus
- Motor: FIVE F90 central 250W/90Nm
- Weight (excluding battery): 23 kg
- Maximum driver weight: 90 kg
- Brakes: Front and rear hydraulic disc brakes
- Saddle: Selle Bassano
- Front fork: Suspended and lockable 63 mm Suntour SF NEX E25
- Gear: 10-speed Shimano Deore
- Pedalling sensor: Torque sensor
- Lights: Front and rear LED Axa
- Lock: Ring lock Abus
- Display: Color LCD: 5 levels of engine assist and soft start device, USB socket, dusk sensor
Travel Cross
Integrated waterproof battery
The battery and the charging plug are fully integrated into the frame with IPX5 protection level from water and dust to avoid damage. Easy charging by removing the battery.
FIVE F110 central motor
The FIVE F110 drive unit is the most powerful motor for off-road trekking. The 110Nm torque allows aggressive driving on mixed routes, even on slopes up to 30%. The engine support is already intense at low frequencies and adapts to any type of route.
Schwalbe Marathon trekking tires
With its tested profile it is the best choice for mountain lovers. They ensure comfort and grip even on the roughest trails. The kevlar internal treatment prevents punctures. Pronounced side knobs for added lateral traction.
Color LCD display
LCD multifunction control unit with 5 levels of assistance, soft start device with lever and memory system of km travelled.
TECHNICAL SPECIFICATIONS | Cross
- Trasmission: Chain KMC special e-bike
- Frame: Hydroformed aluminium 47×67 cm
- Wheels: 29” x 2,35” Schwalbe Tough Tom
- Motor: FIVE F110 central 250W/110Nm
- Weight (excluding battery): 23 kg
- Maximum driver weight: 90 kg
- Brakes: Front and rear hydraulic disc brakes of 180 mm
- Saddle: Selle Bassano – Reko esport
- Front fork: Ended and lockable Suntour XCM 100 mm
- Gear: 10-speed Shimano Deore cassette sprocket Shimano 11-42T
- Pedalling sensor: Torque sensor
- Battery protection level: From water and dust IPX5
- Display: Multifunction LCD control unit: 5 levels of engine assist and soft start device

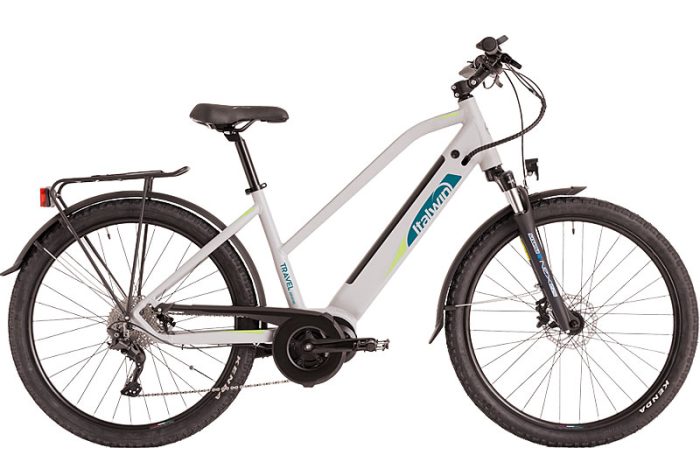

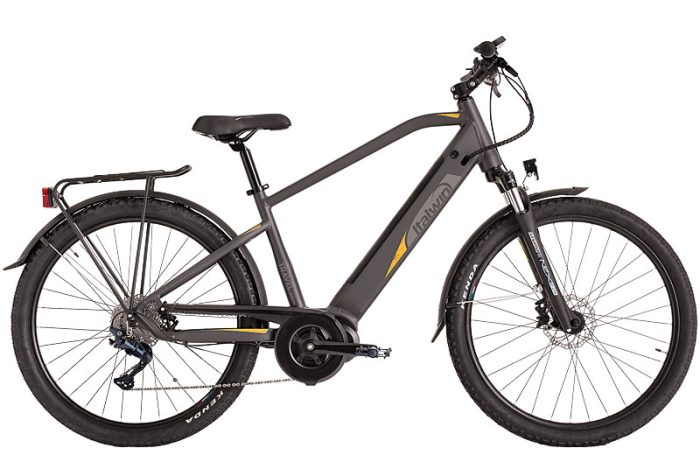

Travel Adventure
Integrated waterproof battery
The battery and the charging plug are fully integrated into the frame with IPX5 protection level from water and dust to avoid damage. Easy charging by removing the battery.
FIVE F90 central motor
FIVE F90 is the central engine for a safe and funny drive, both in the city and on trips out of town. Equipped with exceptional boost, FIVE F90 delivers power to deal with slopes up to 30%.

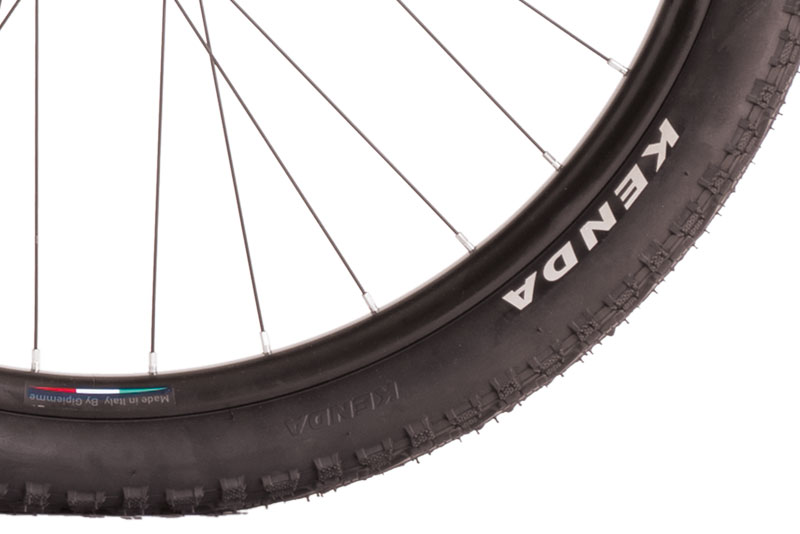

Knobby wheels with wide-tread section
Maximum grip and stability thanks to the Kenda 2.10″ wide-tread tires. The knobby tread allows you to ride safely off-road, even on rough paths.
3,5" LCD display
3.5″ LCD display with backlight, which allows to turn the system on and off, to select the assistance levels, to activate the soft start and to check the battery level. The device is equipped with a USB port to charge your smartphone.
TECHNICAL SPECIFICATIONS | Adventure
- Trasmission: Chain KMC special e-bike
- Frame: Hydroformed aluminium 47×67 cm
- Wheels: 27,5” x 2,10” Kenda
- Motor: Central FIVE F90 250W/90Nm
- Weight (excluding battery): 23 kg
- Maximum driver weight: 90 kg
- Brakes: Front and rear hydraulic disc brakes
- Saddle: Selle Bassano
- Front fork: Suspended and lockable 63 mm Suntour SF NEX E25
- Gear: 10-speed Shimano Deore
- Pedalling sensor: Torque sensor
- Battery protection level: From water and dust IPX5
- Display: Backlight LCD: 5 levels of engine assist and soft start device, USB socket
